The advent of EPCs means commercial landlords can no longer ignore the inefficiency of existing stock. Richard Quartermaine of Cyril Sweett breaks down the costs of revamping these energy guzzlers
01 / Introduction
The focus for improved energy efficiency in commercial property has so far mainly been on new buildings. The introduction of minimum energy performance standards in Part L of the Building Regulations and their tightening in 2006 have led this agenda. Looking ahead, more challenging standards proposed for the Building Regulations to achieve the government’s target for all new non-domestic buildings to be zero carbon by 2019 mean that the industry’s attention will continue to focus heavily on new buildings.
However, new buildings only account for 1-2% of the total building stock each year, meaning that, if the government is to get close to its target of cutting carbon 80% by 2050, significant CO2 reductions will need to come from existing buildings, especially the commercial sector.
In 2008, the introduction of energy performance certificates (EPCs) for non-domestic buildings turned attention towards existing stock. An EPC is required when a building is constructed, sold or let and they are likely to become a key driver for building owners to improve energy efficiency. If a commercial landlord wants to improve the rating of his building to avoid possible obsolescence and manage investment risk, it is important to know what the “quick wins” are and ultimately, how much they will cost.
There is a wealth of technical know-how on how to improve energy efficiency in existing buildings. However, the cost of making these improvements are less publicised and typically based on case study evidence. The dissemination of this information to the decision makers at a strategic level and in their own language has not happened.
The Investment Property Forum commissioned Cyril Sweett to investigate the costs of making improvements to existing commercial buildings typically held in investment portfolios . The key features of the work were to identify:
- The opportunities to improve energy performance of existing commercial buildings
- Those improvements that offer the best financial returns
- The extent to which emissions can be reduced and at what cost.
Cyril Sweett’s research shows there are many low cost energy efficiency improvements that can be made in existing buildings and these improvements can give a significant reduction in CO2 emissions. In addition, the study identifies that many of these improvements can be implemented while the building is let with minimal disruption to the building occupants.
02 / selecting building types
The first stage of the study was to identify buildings within investor portfolios that have the greatest potential for reducing CO2 emissions. Although factory and retail buildings typically account for most emissions from the commercial sector, these buildings offer little opportunities for landlords to influence energy consumption.
As the focus of the study was to identify energy efficiency opportunities available to property investors, the buildings analysed were those where the landlord could have a significant influence on energy consumption. These were:
- Light industrial and warehouse buildings.

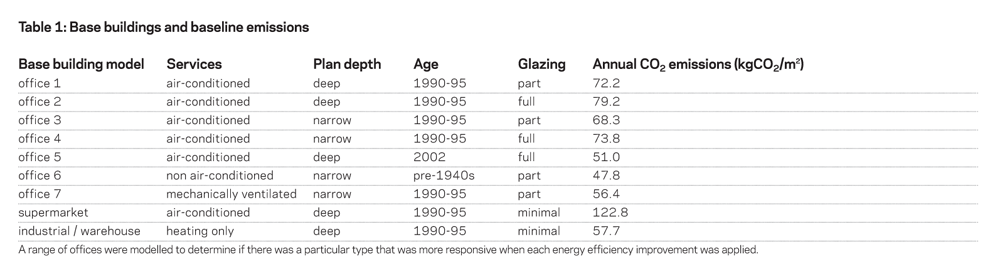

The next step of the study was to define generic building types that would represent the existing commercial stock (rather than use specific case studies) and model their CO2 emissions. The aim of the generic buildings was to take into consideration a number of features that significantly influence energy consumption, such as building age, form, location and air-conditioning. The base buildings studied are shown in table 1 together with their annual baseline CO2 emissions modelled using TAS Building Designer software from EDSL.
03 / Energy efficiency improvements
Replacing building services to meet current legislative and market requirements would automatically improve energy efficiency. Boilers from the early nineties, for example, would be replaced with more efficient models due to technological advances and revised Building Regulations.
There is a range of technologies however that can be employed to make further cuts in baseline CO2 emissions but would come at a higher price. Using the example of replacing a boiler, a highly efficient condensing boiler would save additional CO2 but would command a cost premium.
This raises the question, if a landlord is prepared to spend extra money to save CO2, where should the extra investment be made? To answer this, it was necessary to calculate the cost to save one unit of CO2 for each improvement and compare.

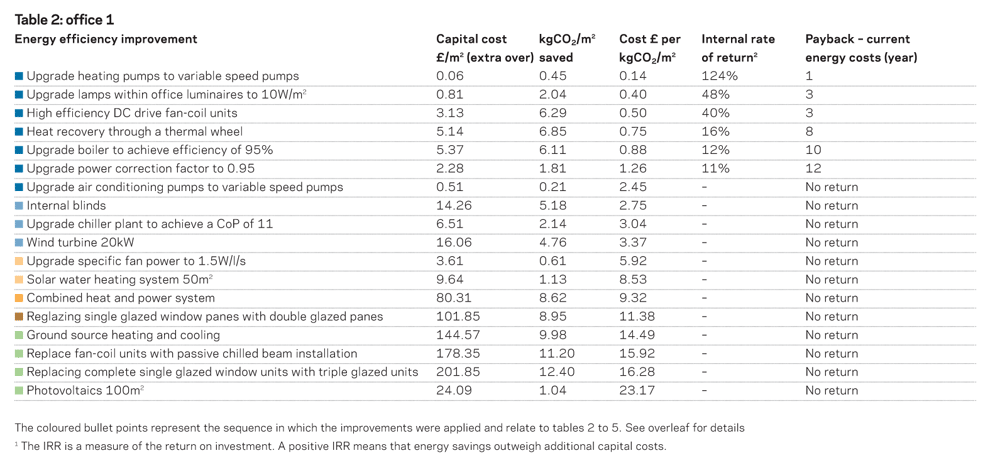

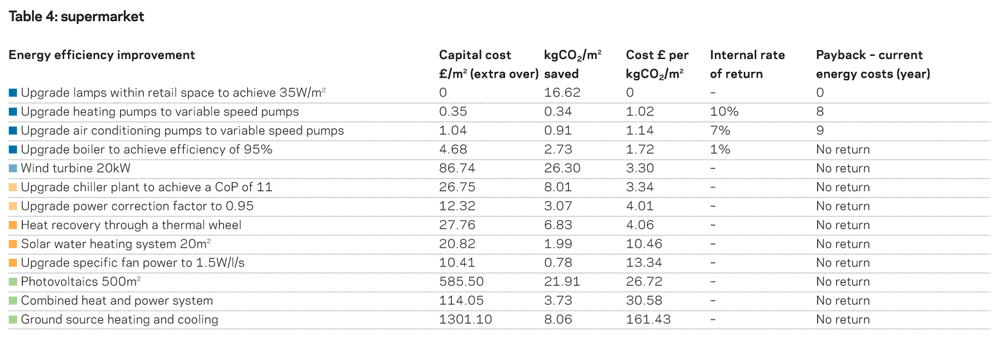

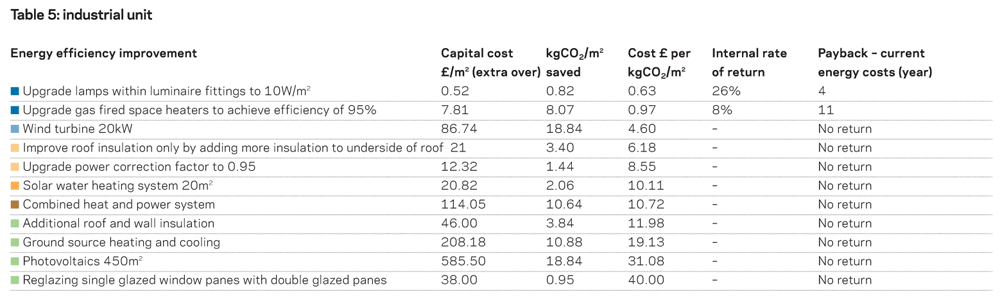

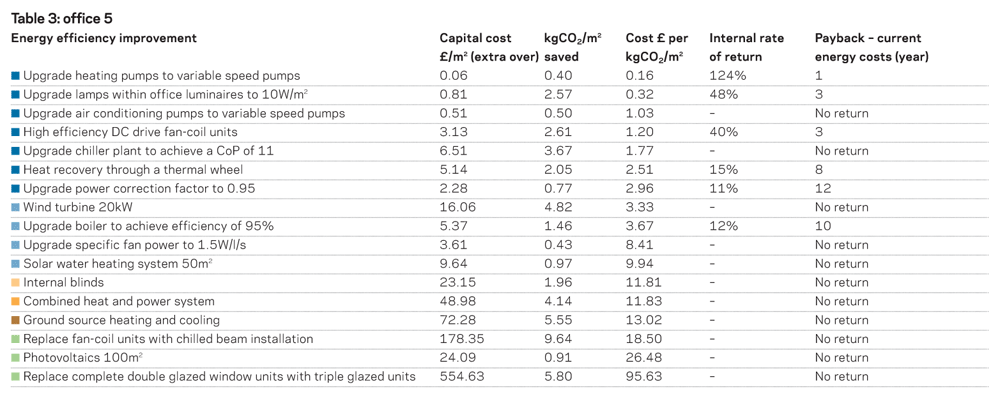

Tables 2 to 5 below show the results for office 1, office 5, the supermarket and the industrial unit. The CO2 figures represent the extra savings from each energy efficiency improvement compared with making a like-for-like replacement to meet current standards. The capital cost is the “extra over” investment required by the landlord to make these improvements. Improvements are ranked according to the cost to save 1kg of CO2.
All results show that the most cost-effective energy efficiency improvements can be made for a small amount of additional expenditure and are very familiar solutions to the industry.
For the nineties offices (1 to 4), the key improvements were broadly consistent. These were namely: variable speed heating pumps, energy efficient lighting (T5 lamps), DC drive fan-coil units, a heat recovery unit and high boiler efficiency. Notable CO2 savings can be achieved by maximising the efficiency of lighting, heating and air-conditioning systems compared with installing low and zero-carbon (LZC) technologies or upgrading the building fabric.
Improving the energy efficiency of lighting and air-conditioning systems (DC drive fan-coils and high efficiency chiller plant) when refurbishing a post-2002 office are most cost-effective and make significant CO2 savings. Improved building fabric means winter heating demand is lower; however, internal heat gains are more prevalent during summer.
The most cost-effective energy efficiency improvements for supermarkets and industrial units, namely efficient heating, lighting and variable speed pumps, were comparable with those for nineties offices. Installing a medium-sized wind turbine (20kW) ranked highly for both supermarkets and industrial units, which proved to be the most cost-effective LZC technology studied. However, the wind turbine is a major capital cost item and the electricity saved from installing a turbine is not sufficient to provide a payback within 30 years.
Another aspect of the study was to determine if there was a financial case from making energy efficiency improvements. Tables 2 to 5 show only the most cost-effective improvements produced a discounted payback within 30 years, the majority of these being with 10 years and with substantial internal rates of return. Variable speed heating pumps, energy efficient lighting and DC drive fan-coil units were the only improvements to pay back in the short term for the offices. Efficient lighting was the only improvement that provided a short-term payback for supermarkets and industrial units.
The study indicated that a number of improvements had investment potential. However, the traditional landlord-tenant relationship means that the landlord will not directly benefit from making the energy efficiency improvements and therefore reduces the attractiveness to a potential investor. The information may be useful to open up negotiations with tenants regarding sharing improvement costs on the basis of savings made in building running costs.
Savings through refurbishment

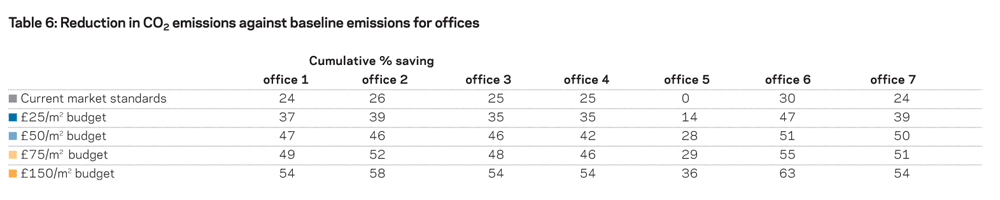

The final part of the research was to assess the overall impact on baseline CO2 emissions and associated cost implications when combining several energy efficiency improvements in a refurbishment. The improvements listed in tables 2 to 5 were packaged together and applied sequentially to the base buildings as shown by the coloured bullet points: the dark blue improvements were applied first, followed by the light blue improvements and so on. The results are shown in table 6 for offices (improvements from tables 2 and 3) and table 7 for supermarkets and industrial units (improvements from tables 4 and 5). This means that the dark blue line (£25/m2) in table 6 for example is the extra expenditure required to implement the dark blue improvements for office 1 (table 2) and office 5 (table 3). Therefore, £50/m2 would be required to carry out both the dark and light blue improvements. Current market standards are represented by the grey line in the tables below.
CO2 emissions for all offices can be vastly improved through refurbishment. In particular, older office buildings present the best opportunities. Two headline findings are:
- Modernising to current market standards reduces baseline CO2 emissions by about 25%
- Additional expenditure of £50/m2 reduces total baseline emissions by about 50%.

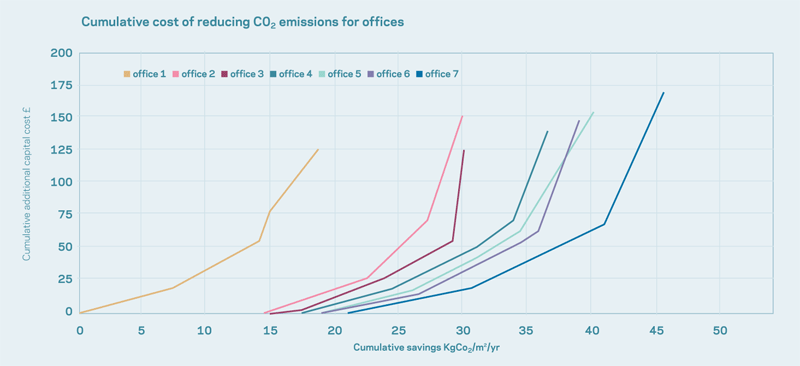

The total quantity of CO2 saved was highest for the deep-plan, fully glazed 1990 office as shown above (office 2). It also makes clear that further reductions in CO2 emissions beyond £50/m2 become significantly less cost-effective.

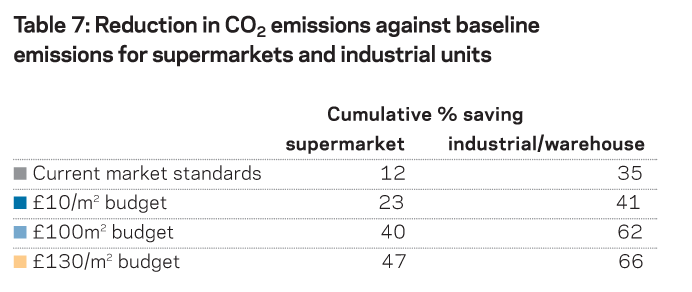

Table 7 shows that the energy efficiency of both supermarkets and industrial units can be improved significantly, particularly from spending an additional £10/m2 above the cost of typical refurbishment.
Although the relative improvement in baseline emissions is significantly more for industrial units compared to supermarkets, the actual quantity of CO2 saved is less. The baseline emissions for industrial units are half those of supermarkets.
04 / non-refurbishment opportunities
The results discussed so far are presented in the context of a full refurbishment assuming the landlord has vacant possession of the building. The study also showed that most improvements can be carried out with minimal disruption to occupiers when some or all parts of a building are let. The key improvements described previously can all be undertaken while a tenant is in occupation, either during normal working hours or at evenings and weekends, and still remain relatively cost-effective once an out-of-hours cost premium is taken into consideration.
However, upgrading fan-coil units will require a vacant building, given the disruption caused, and the logistics of replacing chiller plant is another exception.
The potential to improve energy efficiency when a building is occupied and therefore the EPC rating will be important where a planned refurbishment is some years away and one or more leases are due to expire.
05 / conclusion
There are a number of energy efficiency improvements that are cost-effective and can be made to existing commercial buildings. Applying these low-hanging fruit to nineties and older office buildings can achieve significant energy savings. Many of these opportunities not only apply to buildings awaiting a major refurbishment, but also to buildings that are in occupation. Refurbishing a building to current market standards achieves significant initial CO2 savings and limited additional expenditure can reduce overall emissions by almost a half.
The research demonstrates that there are a number of quick wins as well as more strategic refurbishment decisions that can be taken by investors to reduce the risk of obsolescence of existing buildings caused by tightening legislation, increasing tenant demand and ultimately to improve EPC ratings. Having better data on the costs and efficiency savings of these improvements is also expected to be instrumental in enabling landlords and tenants to more effectively negotiate terms and conditions to support more sustainable property occupation and management.
The article was based on research commissioned by the IPF Research Programme. The full research report is available from www.ipf.org.uk. The IPF Research Programme will also be publishing research on Green Leases and Occupier Demand for Sustainable Offices early in 2009.
